About this product

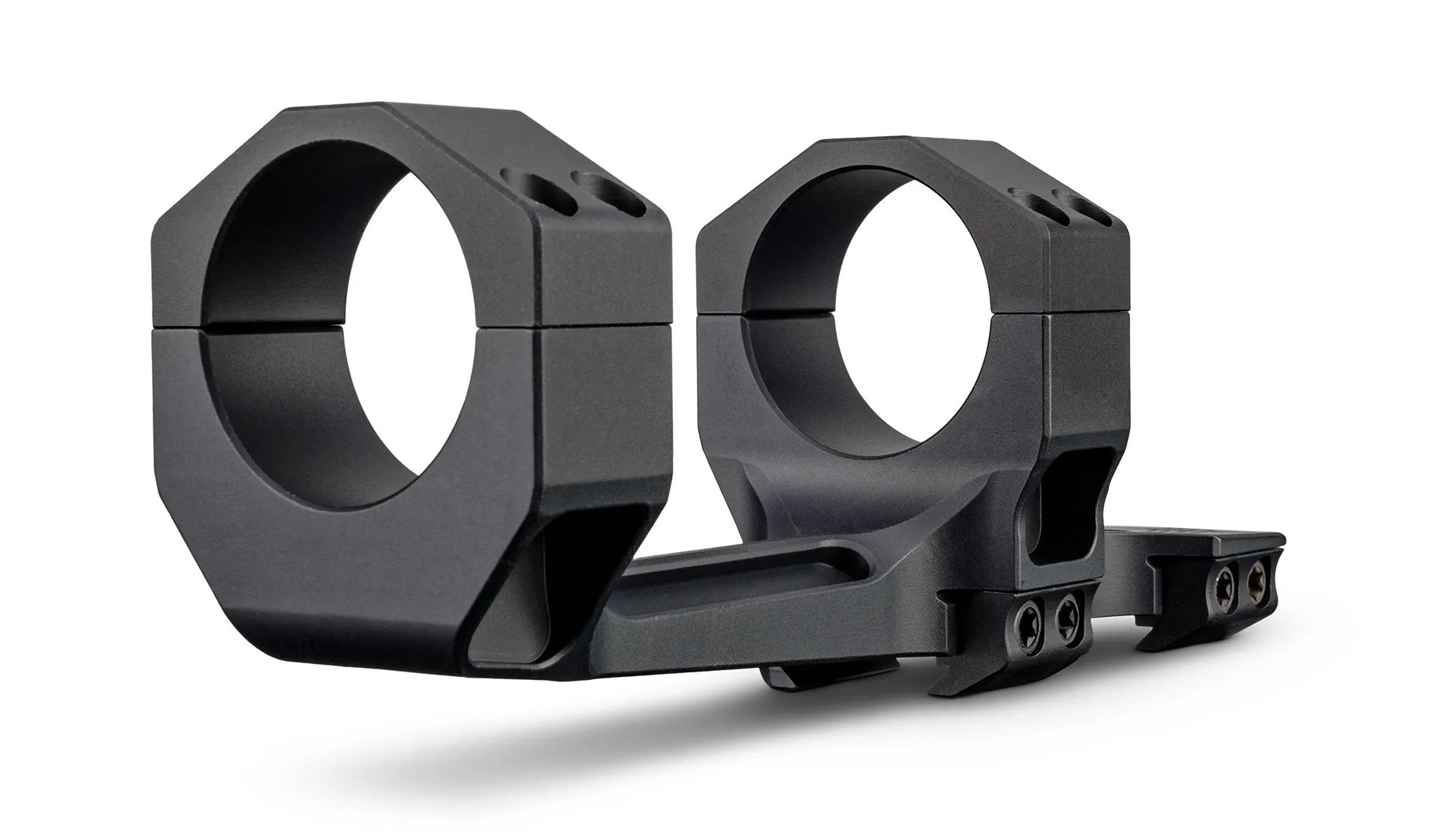

Available in several different sizes with options for 20 MOA cant. These extended cantilevers are designed for mounting scopes with a forward location, providing correct eye relief and head placement. The cantilever ring mount positions the center of the riflescope tube at a height of 1.574” (40mm) from the base.
Manuals & parts Product Manual (PDF) Specifications
| Tube Size | 34mm |
|---|---|
| Center Scope Height | 1.574″ |
| Weight | 197 g (6.94 oz) |
| Cap Screw Torque | 15-18 in-lbs. |
| Base Screw Torque | 45-450 in-lbs. |
