About this product
Whether threading shots through dense timber or dialing in at extended range, Crossfire® HD delivers sharper detail and improved light transmission, giving you the confidence to own any hunt.
Crossfire® HD 3-9×40 Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 12.5 | 1.7 | 1.9 | 4.9 | 4.0 | 3.7 |
| Heights | |
|---|---|
| H1 | H2 |
| 1.9 | 1.7 |
Recommended uses Hunting Manuals & parts Reticle Manual (PDF) (0.97 MB) Product Manual (PDF) Parts Diagram (PDF) Specifications
| Magnification | 3-9x |
|---|---|
| Objective Lens Diameter | 40 mm |
| Focal Plane | Second Focal Plane |

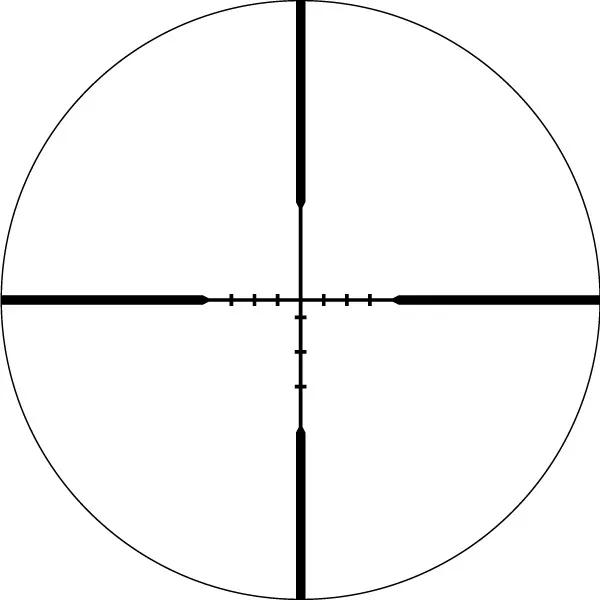

| Reticle | Dead-Hold® BDC (MOA) |
| Eye Relief | 3.8″ |
| Field of View | 37.2′ – 12.4′ @ 100 yds. |
| Turret Style | Capped |
| Tube Size | 1 inch |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 72 MOA |
| Max Windage Adjustment | 72 MOA |
| Parallax Setting | 100 yds. |
| Length | 12.5″ |
| Weight | 16.2 oz. |
