About this product

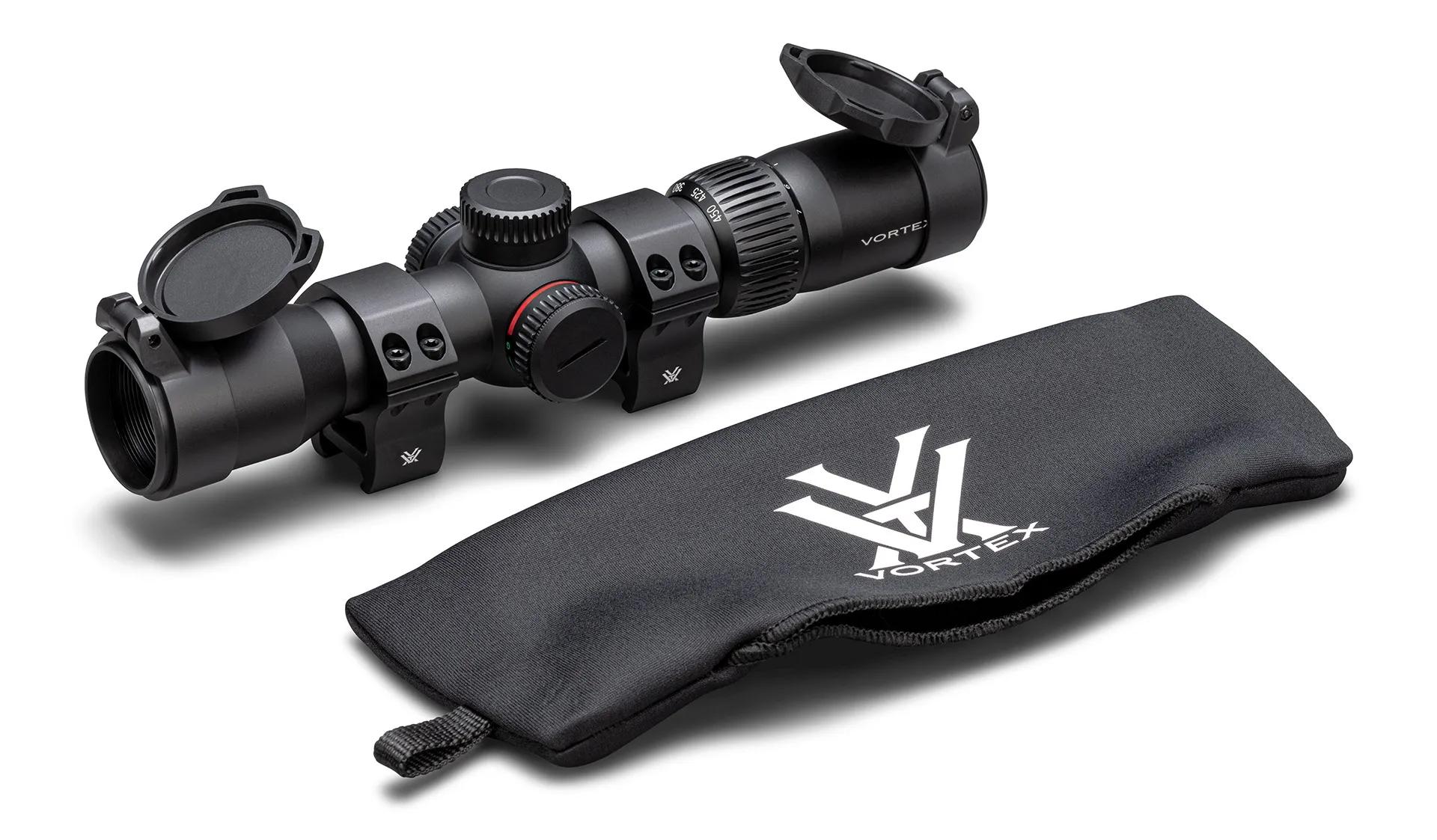

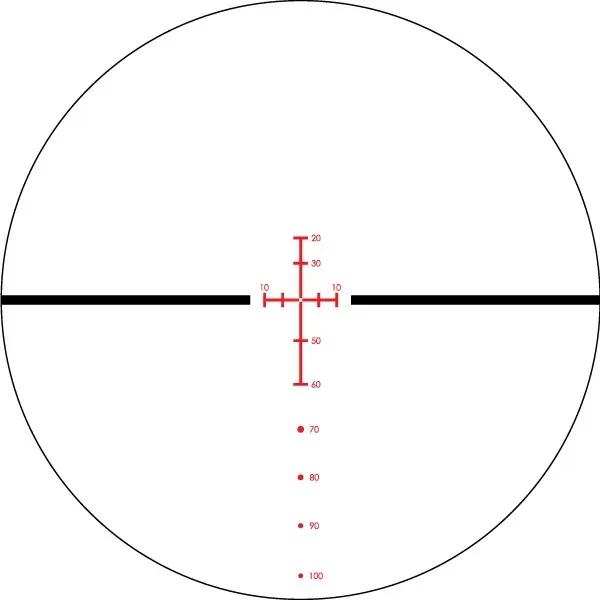

First light, last light, and all day long, this crossbow topper will have you stacking bolts and filling tags in no time. Our purpose-built reticle not only gives you holdover points out to 100 yards, it features red and green illumination for low-light shooting. We also included the magnification and FPS on the magnification ring to keep the scope compatible with a variety of crossbows and setups, and a wide field of view makes it perfect for a variety of shooting situations. Plus, we’re including rings, flip caps, and a neoprene cover, so it’s ready to mount right out of the box. 30mm rings included have a height of 1.1″ (28mm).
Included in the Box
- (2) 30mm Rings
- Flip Caps
- Neoprene Cover
- Lens Cloth
- CR2032 Battery
- Torx® T-15 Wrench
Crossfire® II 2-7×32 Crossbow Scope Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | ||
| 9.5 | 1.7 | 1.5 | 4.5 | ||
| Heights | |
|---|---|
| H1 | H2 |
| 1.6 | 1.5 |
Recommended uses Hunting Manuals & parts Product Manual (PDF) (1.40 MB) Parts Diagram (PDF) (889.29 kB) Specifications
| Magnification | 2-7x |
|---|---|
| Objective Lens Diameter | 32 mm |
| Focal Plane | Second Focal Plane |
| Reticle | XBR-2 (MOA) |
| Eye Relief | 2.7″ |
| Field of View | 57.5’ – 16.4’ @ 100 yards |
| Turret Style | Capped |
| Tube Size | 30mm |
| Adjustment Graduation | 1/2 MOA |
| Travel Per Rotation | 30 MOA |
| Max Elevation Adjustment | 160 MOA |
| Max Windage Adjustment | 160 MOA |
| Parallax Setting | 75 yds. |
| Length | 9.5″ |
| Weight | 14.0 oz |
