About this product
Diamondback® Tactical brings the hardworking legacy of the Diamondback® name into the tactical world, delivering trusted performance for shooters looking to extend their effective range. With solid construction and sharp, clear glass, it keeps you focused whether dialing in for mid-range shots or stretching out to 1,000 yards. Meant for new shooters seeking confidence in their windage and elevation adjustments. It’s tough enough to withstand hard use while delivering tack-driving accuracy, shot after shot.
Included in the Box
- Lens Covers
- Lens Cloth
Diamondback Tactical 4-12×40 Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 14.08 | 1.9 | 2.15 | 5.3 | 5.3 | 3.43 |
| Heights | |
|---|---|
| H1 | H2 |
| 1.86 | 1.71 |
Recommended uses Long-Range Shooting Recreational Shooting Manuals & parts Product Manual (PDF) Reticle Manual (PDF) (0.96 MB) Parts Diagram (PDF) (601.37 kB) Specifications
| Magnification | 4-12x |
|---|---|
| Objective Lens Diameter | 40 mm |
| Focal Plane | Second Focal Plane |

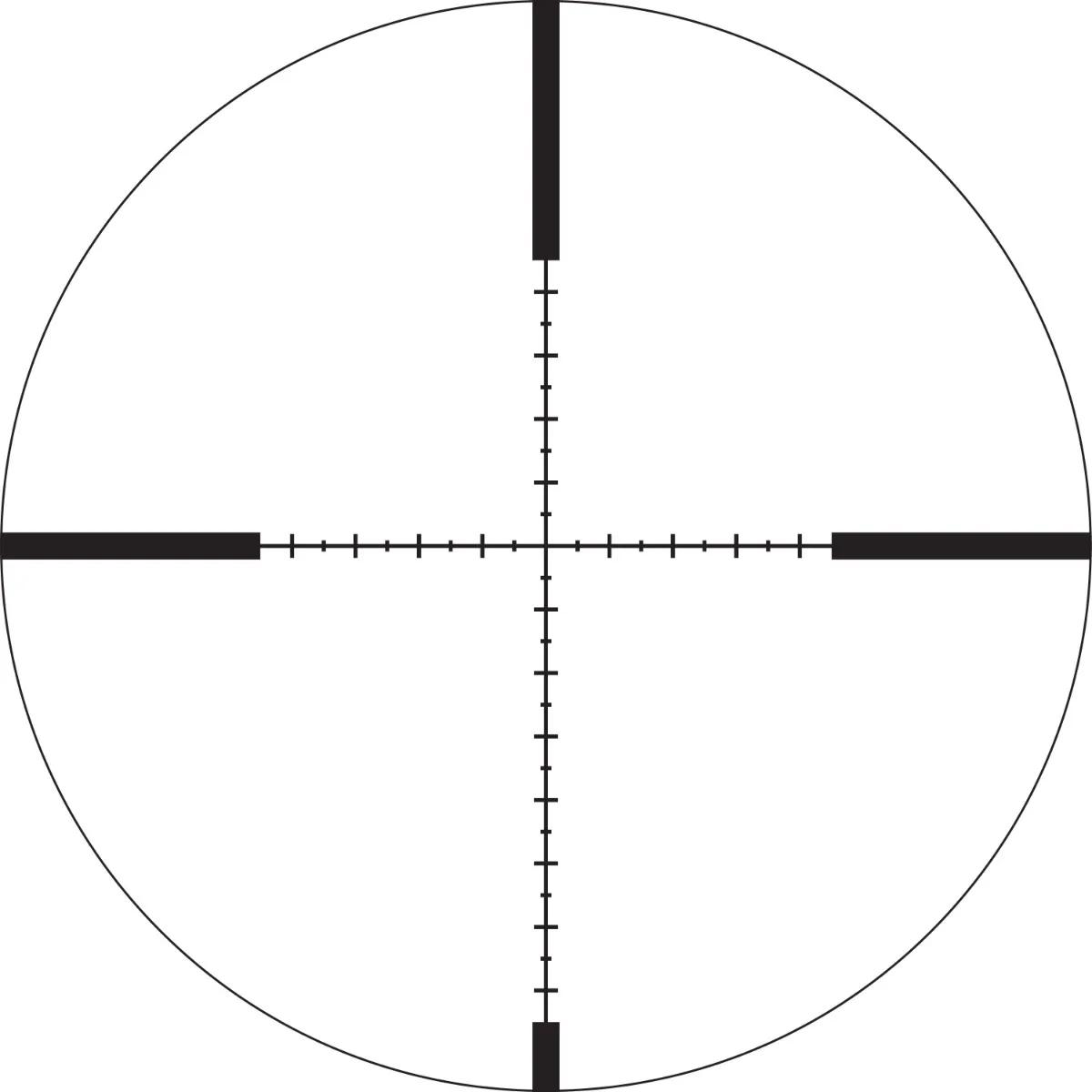

| Reticle | VMR-1 (MOA) |
| Eye Relief | 3.9″ |
| Field of View | 23.6′ – 7.9′ @ 100 yds |
| Turret Style | Exposed |
| Tube Size | 1 inch |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 12 MOA |
| Max Elevation Adjustment | 70 MOA |
| Max Windage Adjustment | 70 MOA |
| Parallax Setting | 100 yds. |
| Length | 14.1″ |
| Weight | 17.5 oz |
